| Code | Size | Pcs. Bag | Pcs. Box |
|---|---|---|---|
| 7A00L1N040400A | 1/2" | 12 | 72 |
| 7A00L1N050500A | 3/4" | 8 | 48 |
| 7A00L1N101000A | 1" | 6 | 36 |
| 7A00L1N121200A | 1"1/4 | - | 10 |
| 7A00L1N141400A | 1"1/2 | - | 6 |
| 7A00L1N202000A | 2" | - | 4 |
| 7A00L1N242400A | 2"1/2 | - | 3 |
| 7A00L1N303000A | 3" | - | - |
| 7A00L1N404000A | 4" | - | - |
-

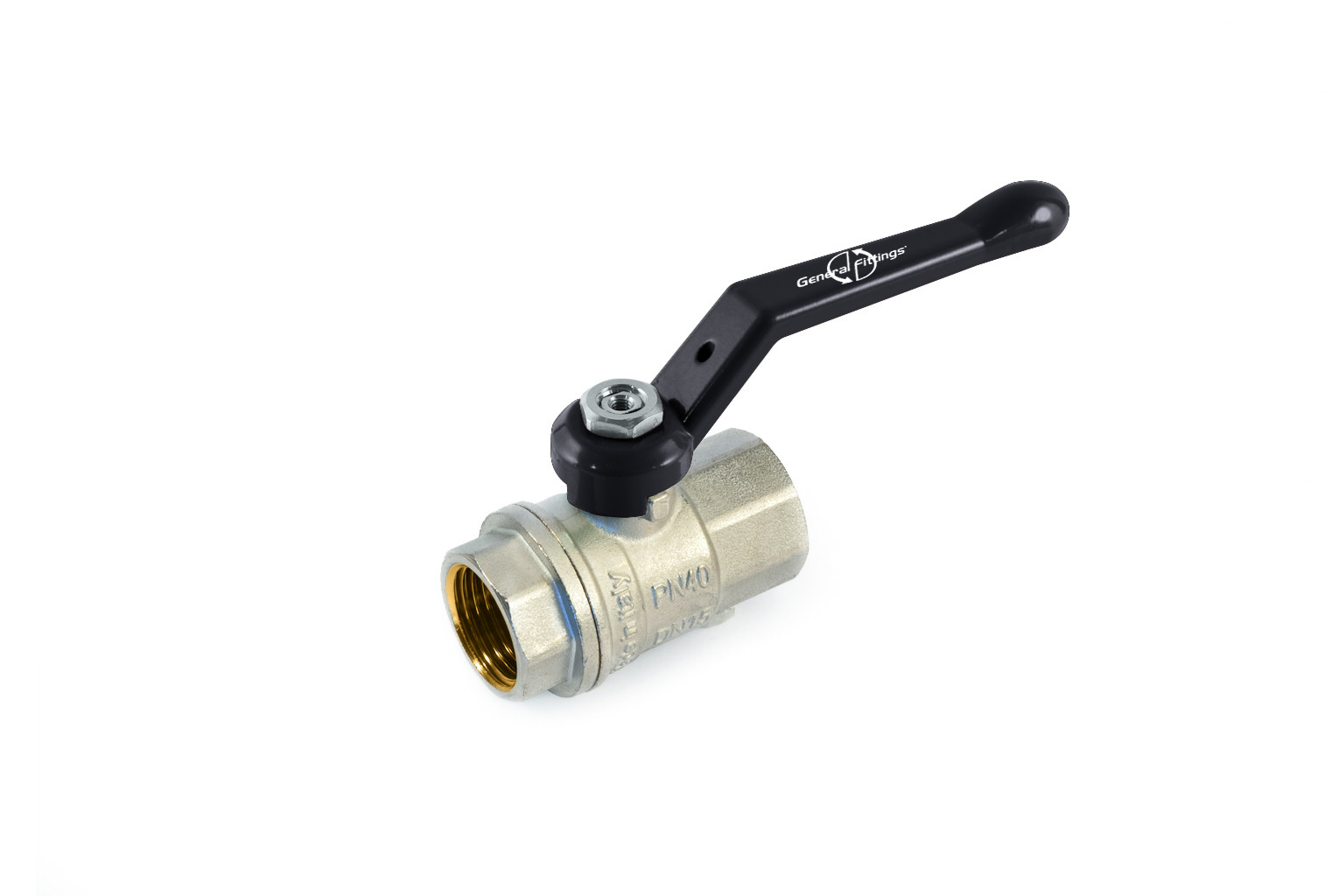

Full bore ball valves of LINE 7100 are suitable for the realization of heating and air conditioning systems, for sanitary and compressed air installations. They can also be used in any type of hydraulic installation (commercial, domestic, industral and agricultural) and with non-aggressive fluids.
Threads complies with UNI EN ISO 228-1 law: “Piping thread for coupling not with thightness on the thread”.
Valves have F/F, M/F or M/M threads.
They are available with aluminium/steel lever or butterfly.
-
APPLICATIONS APPLICATIONS T. min. T. max Max. pressure ![]()
drinking water -20°C +120°C PN20 - PN25 - PN40 ![]()
hot sanitary water -20°C +120°C PN20 - PN25 - PN40 ![]()
cooling -20°C +120°C PN20 - PN25 - PN40 ![]()
radiators -20°C +120°C PN20 - PN25 - PN40 ![]()
floor heating -20°C +120°C PN20 - PN25 - PN40 ![]()
irrigation -20°C +120°C PN20 - PN25 - PN40 ![]()
compressed air -20°C +120°C PN20 - PN25 - PN40 ![]()
-20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -
- Available with steel/aluminium lever or steel/aluminium buttefly
- Not nickel-plated inside in accordance with European regulations on drinking water
- Raw materials complying with UBA LIST
-
Document name File 7100 technical data sheet PDF Download -
