| Code | Ways | Connection | Size | Pcs. Bag | Pcs. Box |
|---|---|---|---|---|---|
| 270059H050402A | 2 | 1/2" | 3/4" | - | 40 |
| 270059H050403A | 3 | 1/2" | 3/4" | - | 30 |
| 270059H050404A | 4 | 1/2" | 3/4" | - | 20 |
| 270059H100402A | 2 | 1/2" | 1" | - | 30 |
| 270059H100403A | 3 | 1/2" | 1" | - | 20 |
| 270059H100404A | 4 | 1/2" | 1" | - | 15 |
-

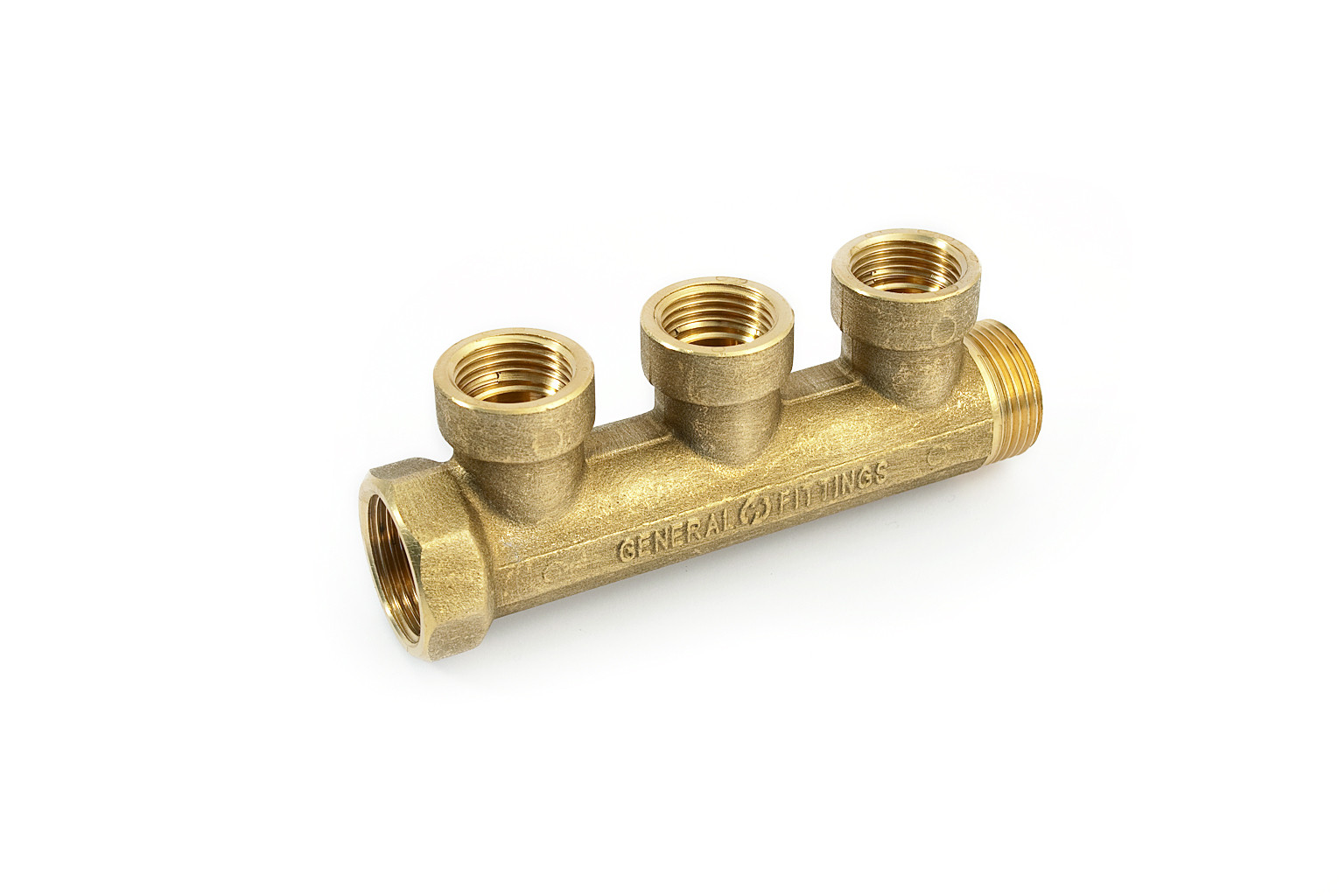

Linear manifolds are suitable for any kind of sanitary installation such as domestic, commercial, industry and farming. They can be used for heating and sanitary installations with any type of non-corrosive fluid. Manifolds configuration allows the realization of hot and/or cold circuits in parallel.
According to the model, they are available in yellow and nickel-plated brass.
-
APPLICATIONS APPLICATIONS T. min. T. max metal pipes tubi metallo T. max metal-plastic pipes Max. pressure ![]()
drinking water (only yellow brass) -20°C +120°C +95°C 10 bar ![]()
hot sanitary water (only yellow brass) -20°C +120°C +95°C 10 bar ![]()
radiators -20°C +120°C +95°C 10 bar ![]()
-20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -
- Suitable both for high and low temperature installations
- Raw materials complying with UBA LIST
- Suitable for plastic, metal and metal-plastic pipes
- Suitable for sanitary and heating installations.
-
COUNTRY CERTIFICATION COUNTRY CERTIFICATION COUNTRY CERTIFICATION ![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
