5300.12

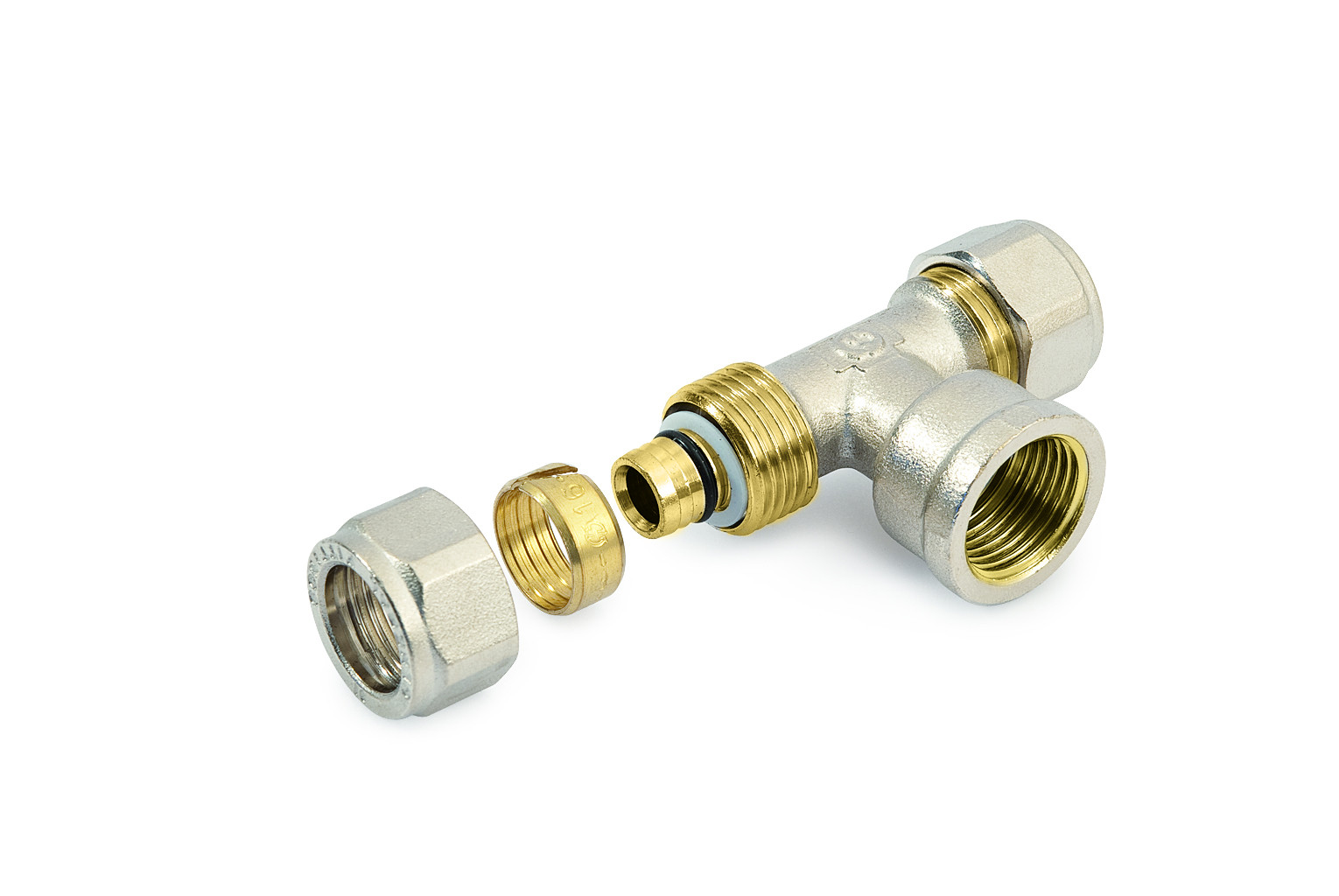

NICKEL-PLATED FEMALE TEE

Code	Thickness	Size	Pcs. Bag	Pcs. Box
530012N041420A	2.0	14x1/2"x14	10	50
530012N041620A	2.0	16x1/2"x16	10	50
530012N041820A	2.0	18x1/2"x18	10	40
530012N042020A	2.0	20x1/2"x20	10	30
530012N051620A	2.0	16x3/4"x16	10	30
530012N051820A	2.0	18x3/4"x18	10	30
530012N052020A	2.0	20x3/4"x20	10	30
530012N052525A	2.5	25x3/4"x25	5	20
530012N052630A	3.0	26x3/4"x26	5	20
530012N053230A	3.0	32x3/4"x32	-	10
530012N102630A	3.0	26x1"x26	5	20
530012N103230A	3.0	32x1"x32	-	10

Brass olive compression fittings for multilayer pipe (line 5300) are suitable for hot and cold water supply in sanitary and heating installations and for any kind of sanitary installation such as domestic, commercial, industry and farming. They can be used with any type of non-corrosive fluid.
The seal is guaranteed by the mechanical tightening of the fitting and the compression of the O-Ring of the pipe holder.

APPLICATIONS	T. min.	T. max	T. of the system	Max. pressure
drinking water	-20°C	+120°C	-20°C/+95°C	10 bar
hot sanitary water	-20°C	+120°C	-20°C/+95°C	10 bar
cooling	-20°C	+120°C	-20°C/+95°C	10 bar
radiators	-20°C	+120°C	-20°C/+95°C	10 bar
floor heating	-20°C	+120°C	-20°C/+95°C	10 bar
irrigation	-20°C	+120°C	-20°C/+95°C	10 bar
-20°C: with the use of glycol in a maximum percentage of 30%	-20°C: with the use of glycol in a maximum percentage of 30%	-20°C: with the use of glycol in a maximum percentage of 30%	-20°C: with the use of glycol in a maximum percentage of 30%	-20°C: with the use of glycol in a maximum percentage of 30%
