2100.01

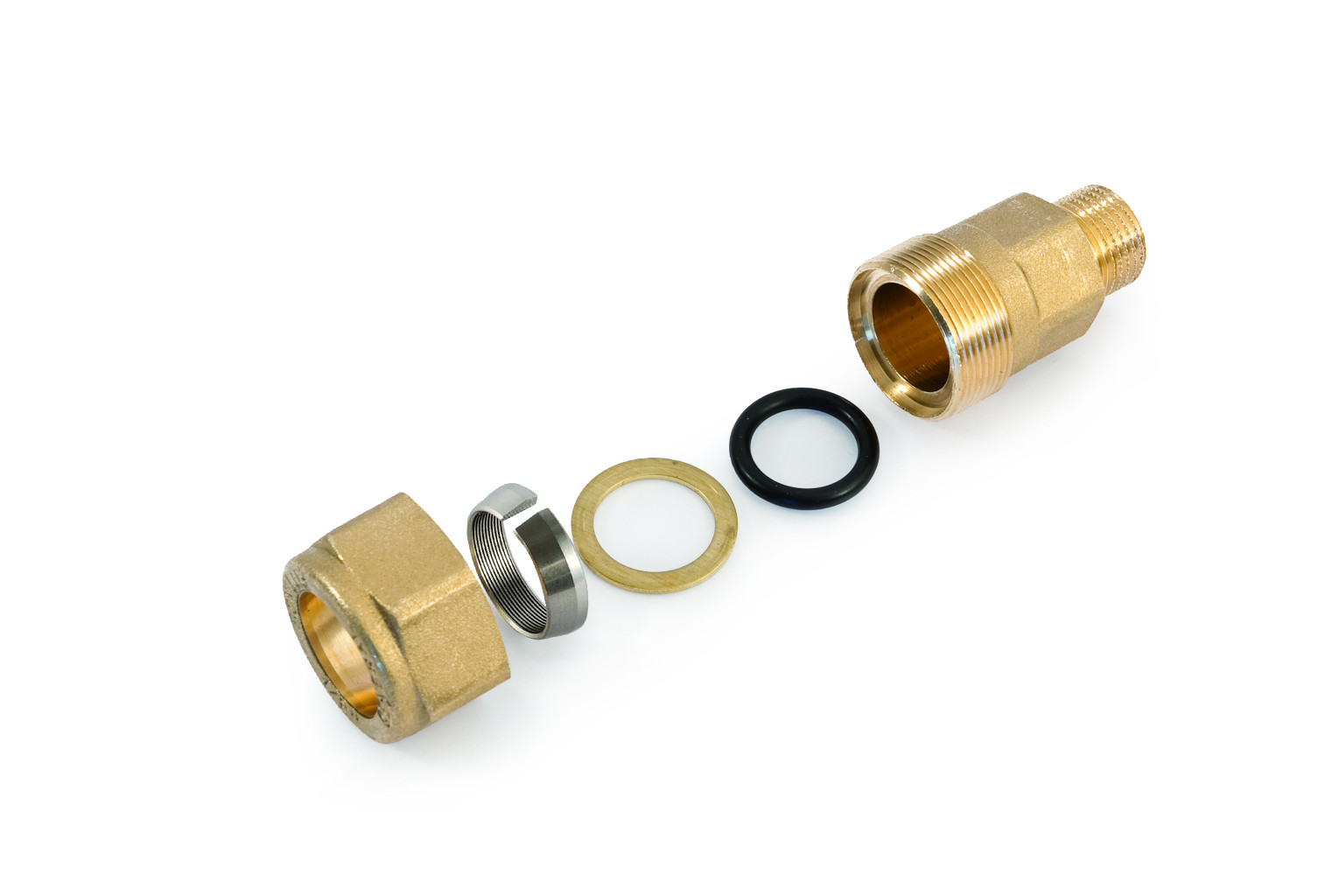

MALE STRAIGHT FITTING

Code	Size	Pcs. Bag	Pcs. Box
210001H030300A	3/8"x3/8"	10	50
210001H040400A	1/2"x1/2"	10	40
210001H050500A	3/4"x3/4"	-	30
210001H101000A	1"x1"	-	20
210001H121200A	1"1/4x1"1/4	-	12
210001H141400A	1"1/2x1"1/2	-	8
210001H202000A	2"x2"	-	6

Reparing fittings of LINE 2100 are made entirely of high quality CW617N brass.
They are suitable for hot and cold water in sanitary and heating installations and in any kind of sanitary installation such as domestic, commercial, industry and farming and with any type of non-corrosive fluid.

APPLICATIONS	T. min.	T. max	Max. pressure
drinking water	-20°C	+100°C	10 bar
hot sanitary water	-20°C	+100°C	10 bar
cooling	-20°C	+100°C	10 bar
radiators	-20°C	+100°C	10 bar
irrigation	-20°C	+100°C	10 bar
compressed air	-20°C	+100°C	10 bar
-20°C: with the use of glycol in a maximum percentage of 30%	-20°C: with the use of glycol in a maximum percentage of 30%	-20°C: with the use of glycol in a maximum percentage of 30%	-20°C: with the use of glycol in a maximum percentage of 30%
