1N00.81

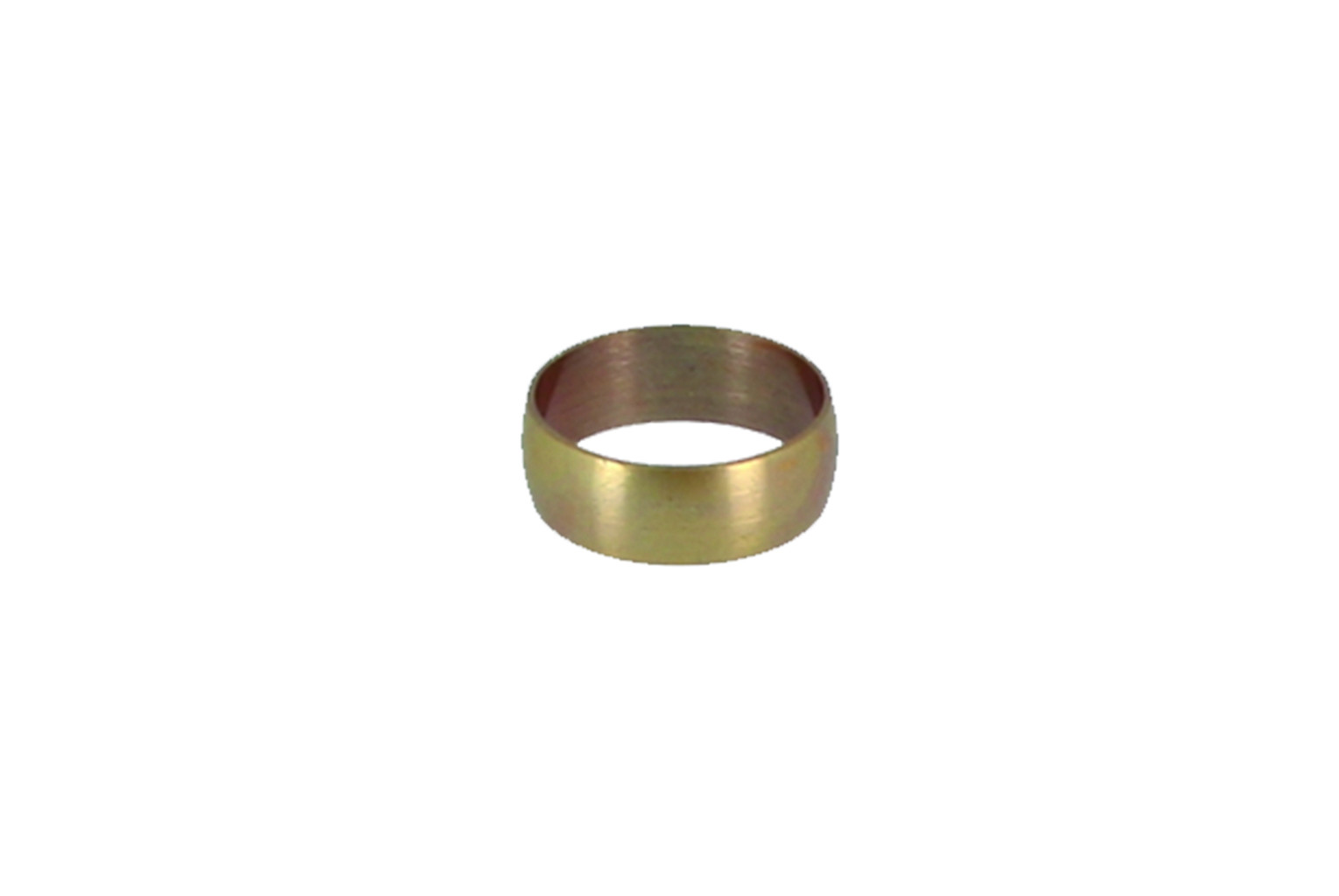

OLIVE

Code	Type	Size	Pcs. Bag	Pcs. Box
1N0081R100000H	Bajo demanda	10	25	2500
1N0081R120000H	Bajo demanda	12	25	1500
190081R140000H	Bajo demanda	14	-	2500
1N0081R150000H		15	-	2000
190081R160000H	Bajo demanda	16	-	2000
190081R180000H	Bajo demanda	18	-	1500
1N0081R220000H	Bajo demanda	22	-	1000
1N0081R280000H	Bajo demanda	28	-	500
180081R350000H	Bajo demanda	35	-	350
180081R420000H	Bajo demanda	42	-	250
180081R540000H	Bajo demanda	54	-	100

Brass fittings belonging to LINE 1N00 series feature a fully metallic body and are designed according to EN 1254-2 standard.
Threads comply with UNI EN 10226-1 law: “Piping thread for coupling on the thread”.
Line 1N00 fittings can be used for the supply and distribution of sanitary hot and cold water and heating and for the distribution of natural gas, both in civil and industrial installations.

APPLICATIONS	T. min.	T. max	Max. pressure
drinking water	-20°C	+120°C	16 bar
sanitary hot water	-20°C	+120°C	16 bar
conditioning	-20°C	+120°C	16 bar
radiators	-20°C	+120°C	16 bar
irrigation	-20°C	+120°C	16 bar
gas	-20°C	+70°C	1 bar
compressed air	-20°C	+30°C	10 bar
solar	-20°C	+200°C	9 bar
-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%
