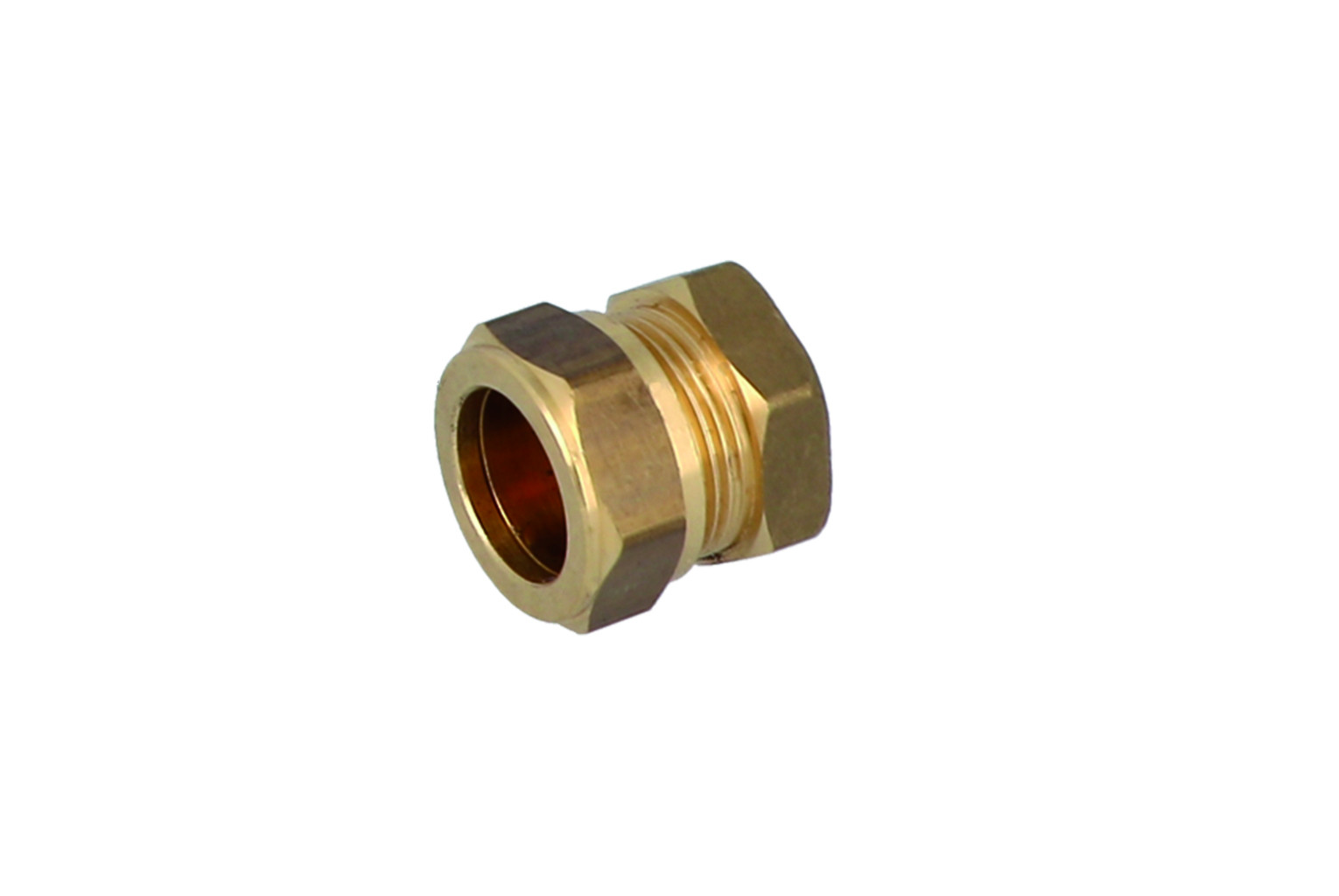

1N00.40

MALE CAP

Code	Size	Pcs. Bag	Pcs. Box
1N0040H120000A	12	10	300
1N0040H150000A	15	10	150
1N0040H220000A	22	10	80
1N0040H280000A	28	10	50
1N0040H350000A	35	-	30

Brass fittings belonging to LINE 1N00 series feature a fully metallic body and are designed according to EN 1254-2 standard.
Threads comply with UNI EN 10226-1 law: “Piping thread for coupling on the thread”.
Line 1N00 fittings can be used for the supply and distribution of sanitary hot and cold water and heating and for the distribution of natural gas, both in civil and industrial installations.

APPLICATIONS	T. min.	T. max	Max. pressure
drinking water	-20°C	+120°C	16 bar
sanitary hot water	-20°C	+120°C	16 bar
conditioning	-20°C	+120°C	16 bar
radiators	-20°C	+120°C	16 bar
irrigation	-20°C	+120°C	16 bar
gas	-20°C	+70°C	1 bar
compressed air	-20°C	+30°C	10 bar
solar	-20°C	+200°C	9 bar
-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%
