| Code | Size | Pcs. Bag | Pcs. Box | Type |
|---|---|---|---|---|
| 1N0023H041200A | 1/2”x12 | 10 | 40 | |
| 1N0023H041400A | 1/2"x14 | 10 | 40 | Bajo demanda |
| 1N0023H041500A | 1/2"x15 | 10 | 40 | |
| 1N0023H041600A | 1/2"x16 | 10 | 40 | Bajo demanda |
| 1N0023H042200A | 1/2"x22 | 5 | 30 | Bajo demanda |
| 1N0023H051500A | 3/4"x15 | 5 | 30 | Bajo demanda |
| 1N0023H052200A | 3/4"x22 | 5 | 20 | Bajo demanda |
-

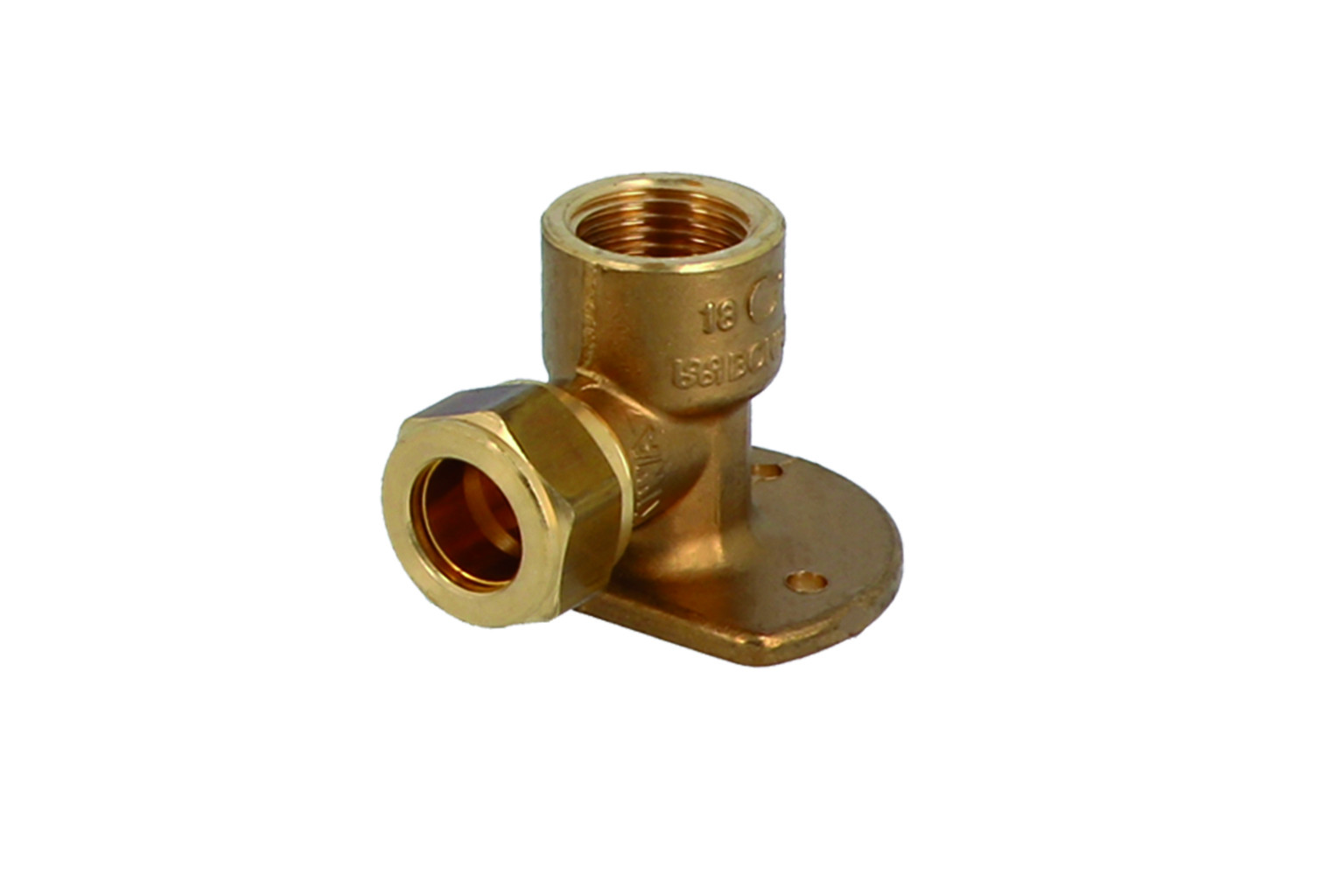

Brass fittings belonging to LINE 1N00 series feature a fully metallic body and are designed according to EN 1254-2 standard.
Threads comply with UNI EN 10226-1 law: “Piping thread for coupling on the thread”.
Line 1N00 fittings can be used for the supply and distribution of sanitary hot and cold water and heating and for the distribution of natural gas, both in civil and industrial installations.
-
APPLICATIONS APPLICATIONS T. min. T. max Max. pressure ![]()
drinking water -20°C +120°C 16 bar ![]()
sanitary hot water -20°C +120°C 16 bar ![]()
conditioning -20°C +120°C 16 bar ![]()
radiators -20°C +120°C 16 bar ![]()
irrigation -20°C +120°C 16 bar ![]()
gas -20°C +70°C 1 bar ![]()
compressed air -20°C +30°C 10 bar ![]()
solar -20°C +200°C 9 bar ![]()
-20°C: with the use of glycol in a maximum percentage of 50% -20°C: with the use of glycol in a maximum percentage of 50% -20°C: with the use of glycol in a maximum percentage of 50% -20°C: with the use of glycol in a maximum percentage of 50% -
- Suitable for sanitary water, heating, gas, compressed air, solar installations
- Wide range
- Metallic sealing
- Easy to assemble
- Raw materials complying with UBA LIST
- Suitable for drinking water
- Durability
- Guaranteed safety (DVGW, KIWA, WRAS certifications)
- Superior quality nut obtained directly from bar
- Suitable both for copper and inox pipe
- Tin plated version available
-
COUNTRY CERTIFICATION COUNTRY CERTIFICATION COUNTRY CERTIFICATION ![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
![]()
