1N00.01

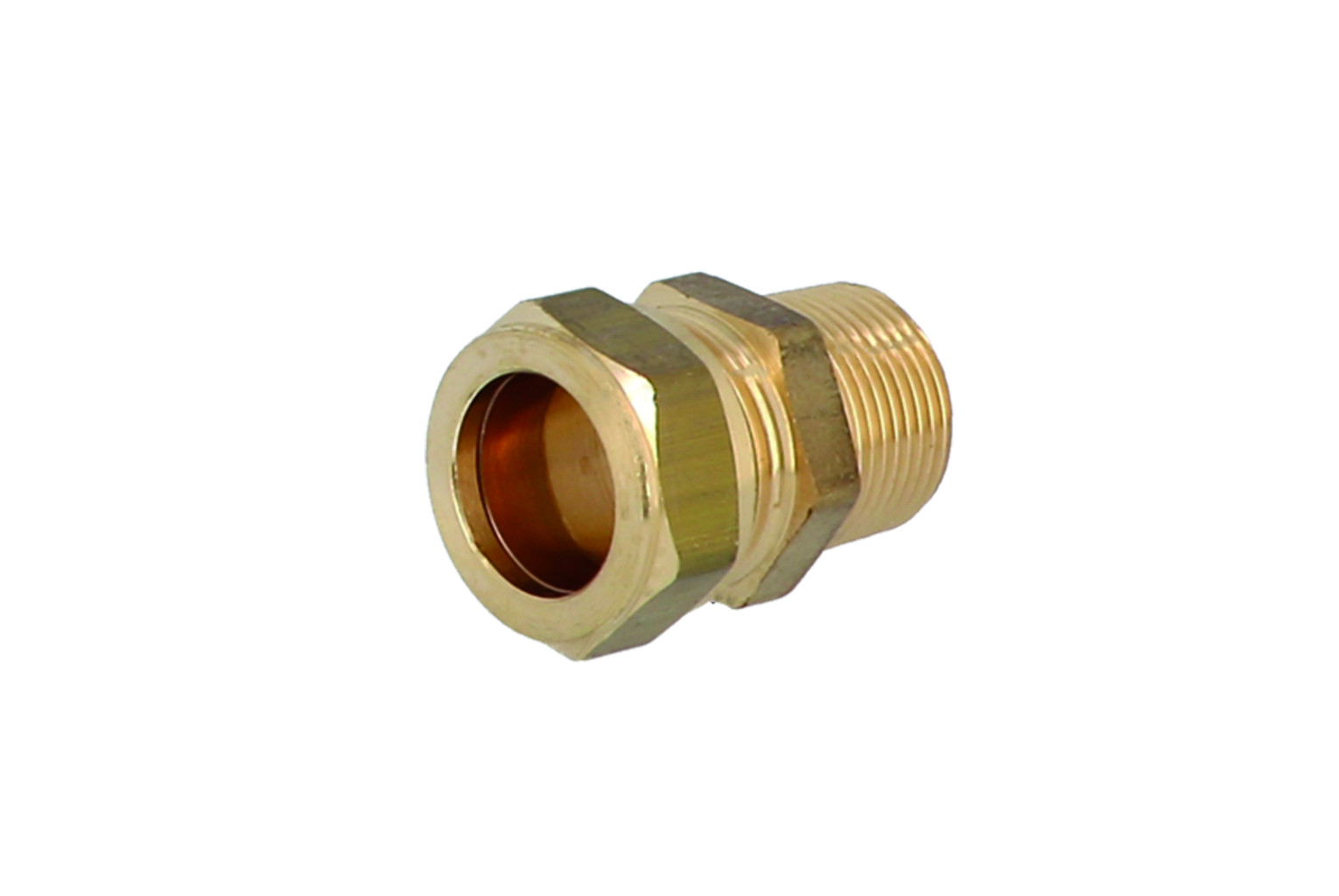

MALE STRAIGHT FITTING

Code	Size	Pcs. Bag	Pcs. Box	Type
1N0001H020600A	1/4”x6	10	300
1N0001H020800A	1/4”x8	10	300
1N0001H021200A	1/4”x12	10	200
1N0001H021500A	1/4"x15	10	180
1N0001H030800A	3/8”x8	10	300
1N0001H031000A	3/8”x10	10	200
1N0001H031200A	3/8"x12	10	200
1N0001H031500A	3/8"x15	10	180
1N0001H040800A	1/2”x8	10	150
1N0001H041000A	1/2”x10	10	150
1N0001H041200A	1/2”x12	10	150
1N0001H041400A	1/2"x14	10	100
1N0001H041500A	1/2"x15	10	100
1N0001H041600A	1/2"x16	10	100
1N0001H041800A	1/2"x18	10	100
1N0001H042200A	1/2"x22	10	70
1N0001H051400A	3/4"x14	10	80
1N0001H051500A	3/4"x15	10	80
1N0001H051600A	3/4"x16	10	80
1N0001H051800A	3/4"x18	10	70
1N0001H052200A	3/4"x22	10	50
1N0001H052800A	3/4”x28	5	50
1N0001H101800A	1"x18	10	50	Bajo demanda
1N0001H102200A	1"x22	10	50
1N0001H102800A	1"x28	5	30
1N0001H123500A	1”1/4x35	-	20
1N0001H144200A	1”1/2x42	-	10
1N0001H205400A	2”x54	-	8

Brass fittings belonging to LINE 1N00 series feature a fully metallic body and are designed according to EN 1254-2 standard.
Threads comply with UNI EN 10226-1 law: “Piping thread for coupling on the thread”.
Line 1N00 fittings can be used for the supply and distribution of sanitary hot and cold water and heating and for the distribution of natural gas, both in civil and industrial installations.

APPLICATIONS	T. min.	T. max	Max. pressure
drinking water	-20°C	+120°C	16 bar
sanitary hot water	-20°C	+120°C	16 bar
conditioning	-20°C	+120°C	16 bar
radiators	-20°C	+120°C	16 bar
irrigation	-20°C	+120°C	16 bar
gas	-20°C	+70°C	1 bar
compressed air	-20°C	+30°C	10 bar
solar	-20°C	+200°C	9 bar
-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%	-20°C: with the use of glycol in a maximum percentage of 50%
