SÉRIE 5T00

SÉRIE 5T00
Raccords à sertir multiprofil pour tube multicouche avec système Leak Before Press
  • Les raccords à sertir pour les tubes multicouche de la SÉRIE 5T00 SAFE_PRESS sont équipés de la fonction LEAK BEFORE PRESS (LBP) qui permet de visualiser les fuites d'eau si le raccord n'a pas été serti. Grâce à la fonction LBP, il est possible de reconnaître rapidement les points de non-sertissage et par conséquent d'intervenir en réduisant la possibilité d'erreurs ou d'oublis pouvant affecter l'étanchéité du système dans le temps.
    Les raccords peuvent être utilisées indifféremment avec les profils TH, H, U.
    Les raccords peuvent être utilisés dans les systèmes d'alimentation en eau chaude et froide à des fins sanitaires ou de chauffage/refroidissement, dans tous les types d'installations hydrauliques (commerciales, domestiques, industrielles et agricoles) et en principe avec des fluides non agressifs.
    La géométrie du raccord permet un excellent accouplement entre le tube et le raccord après le sertissage et les fenêtres sur le support de la bague permettent de vérifier l'insertion correcte du tube. Deux joints toriques garantissent l'étanchéité et la fiabilité du produit dans le temps.
    Le corps du raccord est en laiton, tandis que la douille est en acier AISI 304.
    Dans le cas d'installations sous gaine, il faut éviter tout contact entre le mélange de ciment et les parties métalliques du raccord. Le type de raccord étant irréversible (non démontable), il est possible de positionner le raccord sous gaine, en prenant soin de le protéger avec des matériaux appropriés.
  • Applications Applications T. min.  T. max  T. de système Press.max
    eau potable -20°C  +120°C  -20°C/+95°C 10 bar
    eau chaude sanitaire -20°C  +120°C  -20°C/+95°C 10 bar
    refroidissement -20°C  +120°C  -20°C/+95°C 10 bar
    radiateurs -20°C  +120°C  -20°C/+95°C 10 bar
    chauffage au sol -20°C  +120°C  -20°C/+95°C 10 bar
    irrigation -20°C  +120°C  -20°C/+95°C 10 bar
    air comprimé -20°C* +120°C  -20°C/+95°C 10 bar
    -20°C : avec une concentration maxi de 30% de glycol dans l'eau -20°C : avec une concentration maxi de 30% de glycol dans l'eau -20°C : avec une concentration maxi de 30% de glycol dans l'eau -20°C : avec une concentration maxi de 30% de glycol dans l'eau -20°C : avec une concentration maxi de 30% de glycol dans l'eau
    • Fonction LBP (Leak Before Press): sécurité maximale
    • Multiprofil
    • Anneau diélectrique avec fenêtre pour vérifier la bonne position du tube
    • Double joint torique
    • Approuvé DVGW
    • Utilisation de matières premières de haute qualité [UBA LIST]
    • Filetage conique ISO 7/1
    • Installation efficace: possibilité de créer des systèmes en série et en anneau avec fixation murale pour assurer une meilleure distribution et un meilleur échange d'eau
    • Traçabilité du produit garantie par la date estampillée sur le corps du raccord
    • Large gamme
  • Nom du document Fichier
    KIWA MADE IN ITALY certificate_5T00 PDF Télécharger
    ACS certificate_5T00 PDF Télécharger
    DVGW certificate_5T00 PDF Télécharger
    DVGW sanitary system certificate_5T00 PDF Télécharger
    KIWA fittings certificate_5T00 PDF Télécharger
    KIWA sanitary system certificate_5T00 PDF Télécharger
    KIWA KOMO certificate_5T00 PDF Télécharger
    Minsk tip Proiekt certificate_5T00 PDF Télécharger
    PZH certificate_5T00 PDF Télécharger
    Fiche technique 5T00 SAFE_PRESS PDF Télécharger
    Déclaration de conformité_SafePress PDF Télécharger
  • ÉTAT CERTIFICATION ÉTAT CERTIFICATION

Gamme de produits

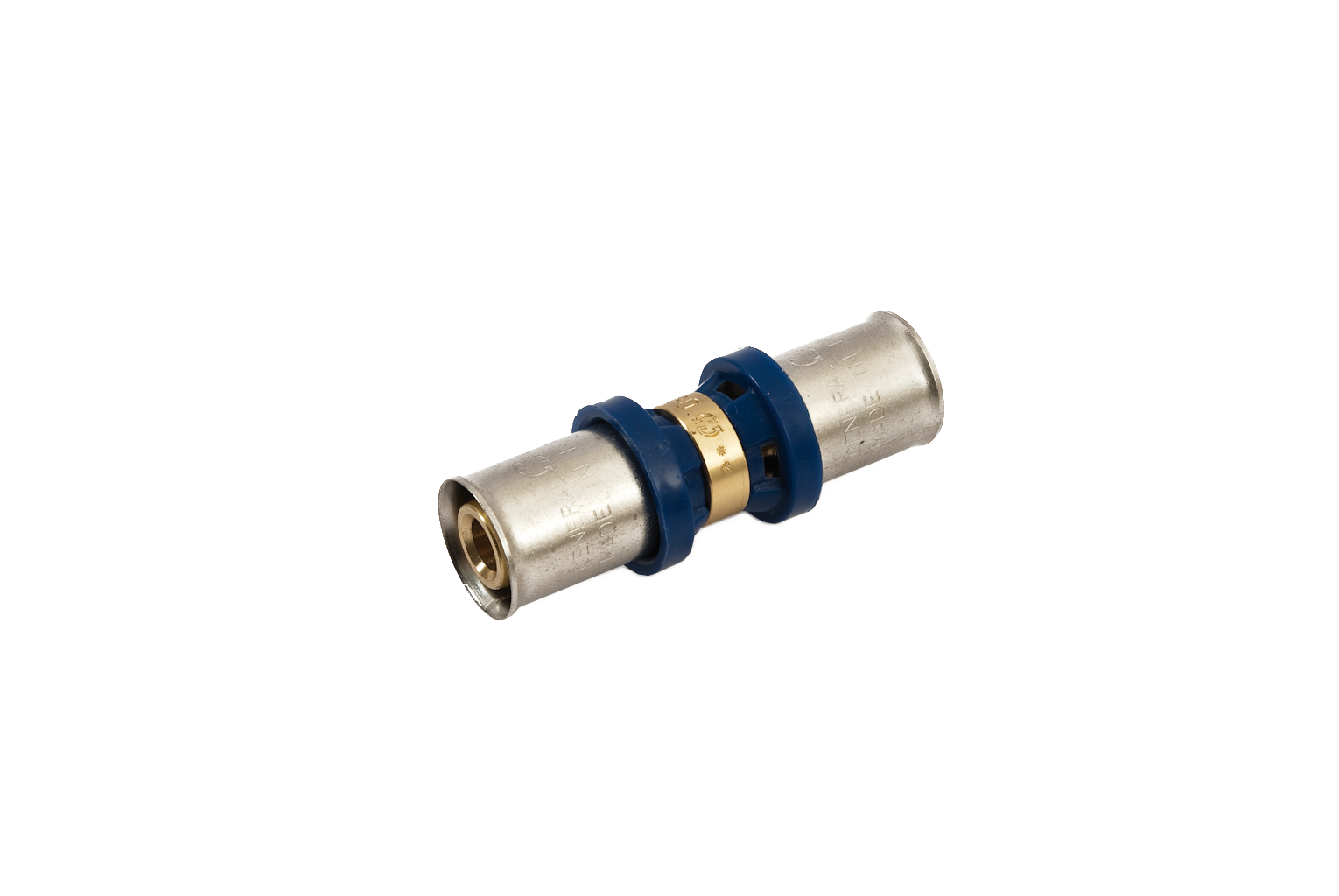

5T00.00
RACCORD DROIT
5T00.01
MANCHON MÂLE À VISSER
5T00.02
RACCORD DROIT FEMELLE
5T00.03
RACCORD DROIT RÉDUIT
5T00.07
RACCORD PASSERELLE MULTICOUCHE VERS CUIVRE

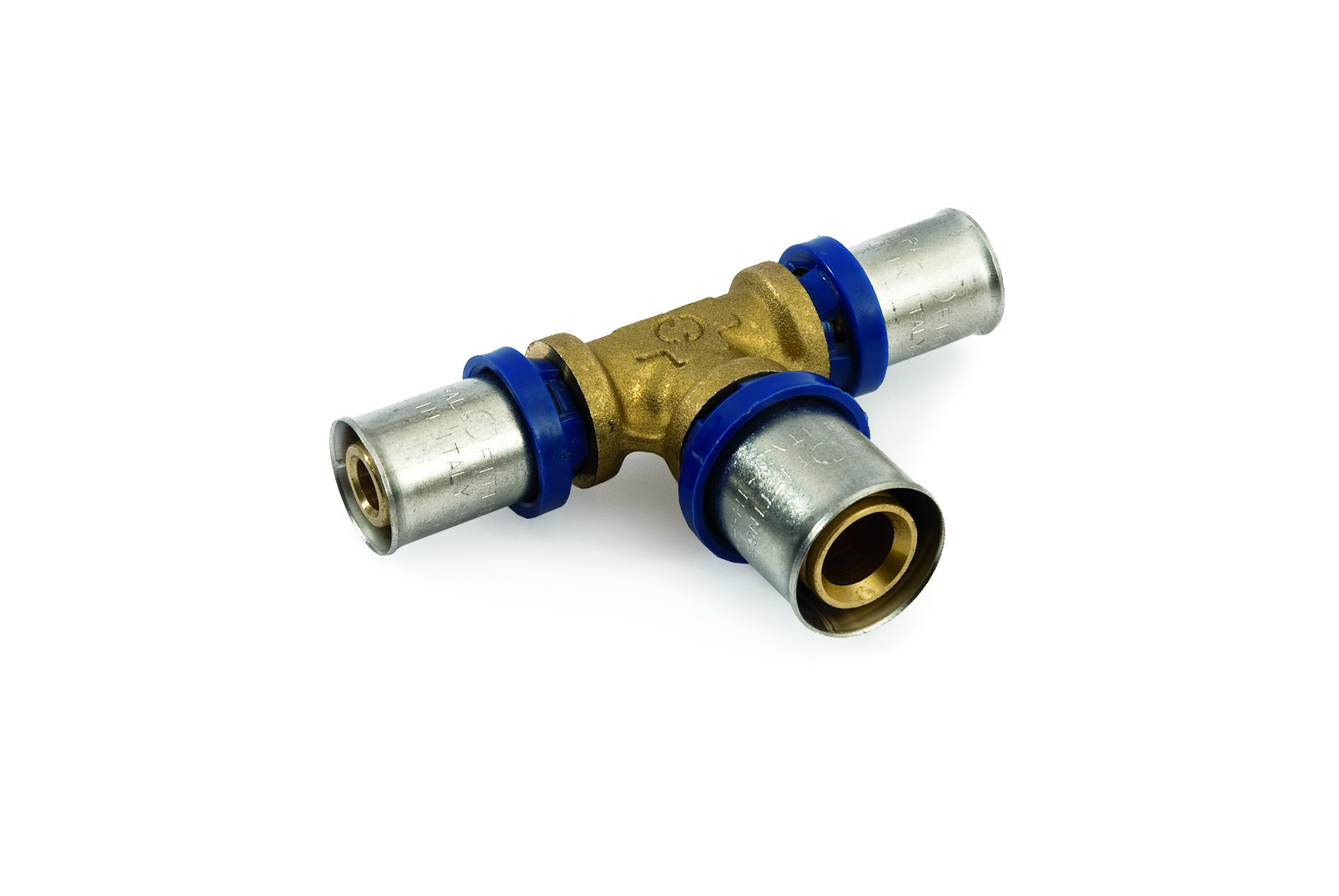

5T00.10
TÉ ÉGAL
5T00.11
TÉ MÂLE
5T00.12
TÉ FEMELLE
5T00.13
TÉ RÉDUIT
5T00.20
COUDE ÉGAL
5T00.21
COUDE MÂLE
5T00.22
COUDE FEMELLE
5T00.23
APPLIQUE FEMELLE, FIXATION PAR 3 VIS
5T00.30
Raccord à L pour radiateurs, tube cuivre Ø 15 (L=150)
5T00.34
APPLIQUE DOUBLE FEMELLE, FIXATION PAR 3 VIS
5T00.74
ROBINET À TOURNANT SPHÉRIQUE AVEC VIS AMOVIBLE
5T00.85
RACCORD PASSERELLE MULTICOUCHE VERS CUIVRE À COMPRESSION
5T00.C1
BOUCHON
5T00.C6
SUPPORT MURAL DE 2 APPLIQUES À SERTIR
5T00.C7
RACCORD DROIT À JOINT PLAT AVEC ÉCROU TOURNANT
5T00.G3
COUDE À ÉCROU TOURNANT JOINT PLAT
5T00.I5
MANCHON ÉCROU TOURNANT À JOINT CONIQUE
5T00.I5.N
RACCORD DROIT NICKELÉ SIÈGE CONIQUE JOINT TORIQUE AVEC BOUCLE
5T00.K4
COUDE 105°
5T00.K7
SUPPORT MURAL DE 2 APPLIQUES À SERTIR
5T00.N2
RACCORD PASSERELLE MULTICOUCHE VERS CUIVRE À SERTIR
