| Code | Inlet | Ways | Connection | Pcs. Bag | Pcs. Box |
|---|---|---|---|---|---|
| 6300E7N0505B2A | 3/4" | 2 | 3/4" EK. | - | 15 |
| 6300E7N0505B3A | 3/4" | 3 | 3/4" EK. | - | 10 |
| 6300E7N0505B4A | 3/4" | 4 | 3/4" EK. | - | 6 |
| 6300E7N1005B2A | 1" | 2 | 3/4" EK. | - | 10 |
| 6300E7N1005B3A | 1" | 3 | 3/4" EK. | - | 10 |
| 6300E7N1005B4A | 1" | 4 | 3/4" EK. | - | 6 |
-

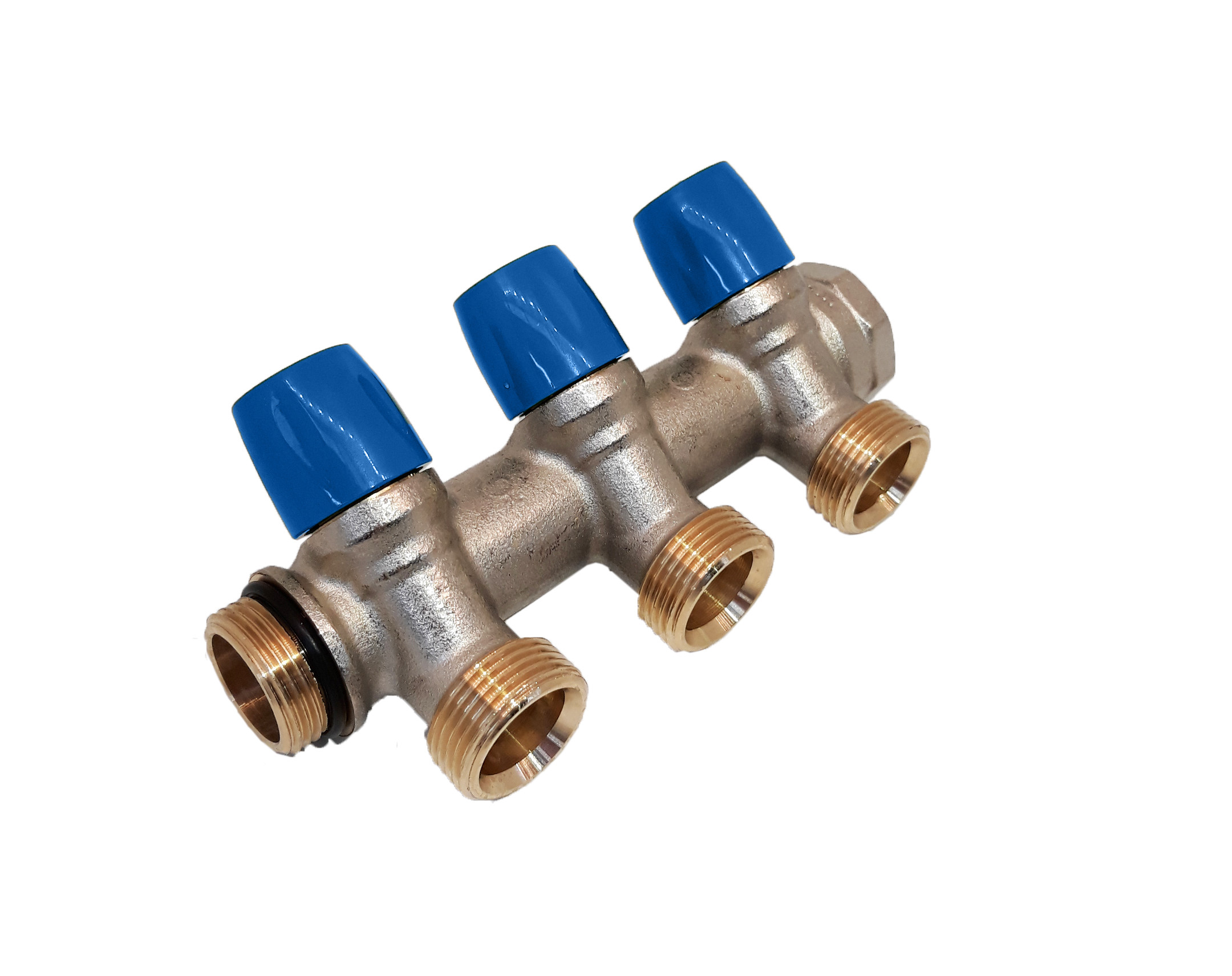

FLEXUS manifolds are suitable for heating and sanitary water distribution. Self aligning grants the aligning of the coupled manifolds without using any additional means, such as teflon tape or hemp. They are available with screws (6200 and 6300) or with mini valves (6200.R6).
Flexus manifolds are suitable for sanitary, heating and cooling installations. Their configuration allows the realization of hot and/or cold circuits in parallel.
-
APPLICATIONS APPLICATIONS T. min. T. max T.of the system Max. pressure ![]()
drinking water -20°C +120°C -20°C +95°C 10 bar ![]()
hot sanitary water -20°C +120°C -20°C +95°C 10 bar ![]()
cooling -20°C +120°C -20°C +95°C 10 bar ![]()
radiators -20°C +120°C -20°C +95°C 10 bar -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -20°C: only with antifreeze liquid (glycol) in % max of 30% -
- Self-aligning granting the correct and quick aligning of the coupled manifolds
- Constant center distance
- Perfectly tight: thanks to the O-Ring the coupling is tight without using any additional means, such as Teflon tape or hemp, for a faster installation
- No need to use hemp or other sealants
- Suitable for drinking water
- Product traceability guaranteed by the date stamped on the body of the manifold (only for 6200.E7)
- Reinforced collar
- Raw materials complying with UBA LIST
- Suitable for plastic, metal and metal-plastic pipes
- Available with screws and mini valves
- Double O-Ring seal for improved tightness
- Encumbrances reduction
-
